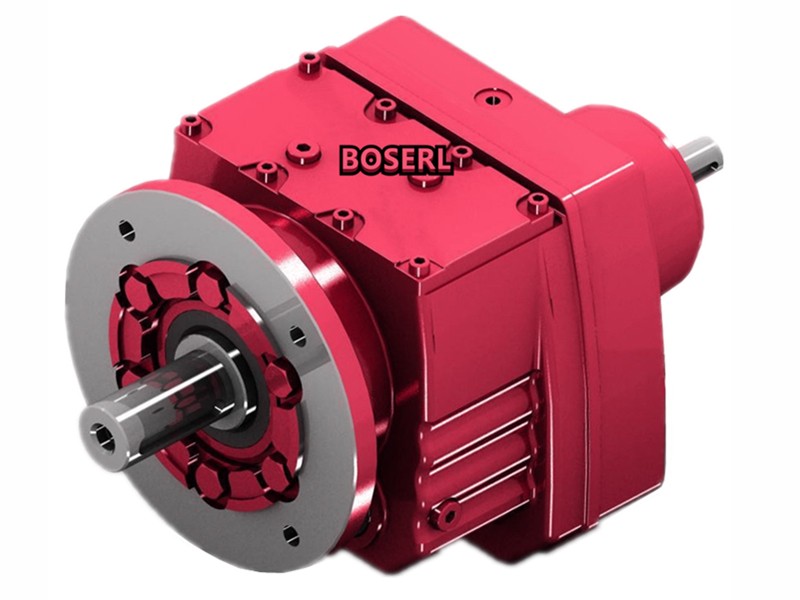

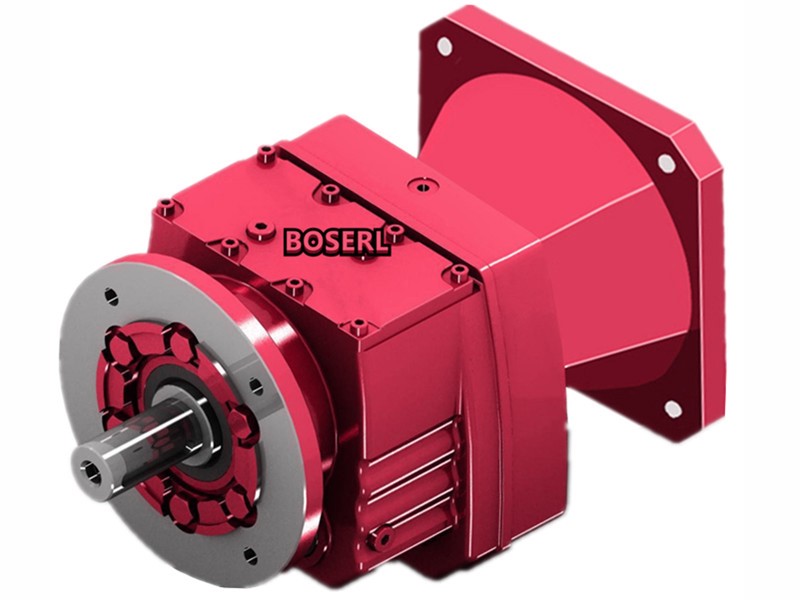

RF88減速機詳細信息
RF88減速機
訂購熱線：13360667204
RF88減速機傳動比計算：齒輪減速馬達
傳送帶參數：齒輪直徑190，傳送4.6噸，傳送一分鐘16米
16米÷（0.19齒輪直徑X3.14）=26.82轉每分鐘
4.6噸換算成N=46000N
46000×0.095齒輪半徑×0.06摩擦系數=262.2N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍262.2×2=524.4N.m
電機轉數1400÷輸出轉數26.82=52.2比
524.4N.m輸出扭矩÷52.2比=10.05N.m電機扭矩
10.05N.m電機扭矩?fù)Q算成功率1.59KW左右
對應的RF88減速機選型參數：
型號：RF88-BEJ2.2KW
減速比：52.82
輸出轉數：27轉每分鐘
輸出扭矩：775N.m
安全系數：2
RF88減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）RF系列減速機
RF88立式硬齒面斜齒輪減速機型號：
RF87系列減速機參數大全：同軸斜齒輪減速電機
RF87減速機配0.37KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF87-Y0.37KW | 0.37KW | 3.7rpm | 960N.m | 1.6 |
| RF87-Y0.37KW | 0.37KW | 4.2rpm | 840N.m | 1.85 |
| RF87-Y0.37KW | 0.37KW | 4.4rpm | 800N.m | 1.95 |
| RF87-Y0.37KW | 0.37KW | 5rpm | 705N.m | 2.2 |
| RF87-Y0.37KW | 0.37KW | 5.8rpm | 605N.m | 2.6 |
| RF87-Y0.37KW | 0.37KW | 6.4rpm | 555N.m | 2.8 |
RF87減速機配0.55KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF87-Y0.55KW | 0.55KW | 5.6rpm | 930N.m | 1.65 |
| RF87-Y0.55KW | 0.55KW | 6.4rpm | 820N.m | 1.9 |
| RF87-Y0.55KW | 0.55KW | 6.7rpm | 780N.m | 2 |
| RF87-Y0.55KW | 0.55KW | 7.6rpm | 690N.m | 2.2 |
| RF87-Y0.55KW | 0.55KW | 8.9rpm | 590N.m | 2.6 |
| RF87-Y0.55KW | 0.55KW | 9.7rpm | 540N.m | 2.9 |
| RF87-Y0.55KW | 0.55KW | 11rpm | 475N.m | 3.3 |
| RF87-Y0.55KW | 0.55KW | 12rpm | 450N.m | 3.4 |
| RF87-Y0.55KW | 0.55KW | 13rpm | 390N.m | 3.9 |
RF87減速機配0.75KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF87-Y0.75KW | 0.75KW | 5.8rpm | 1230N.m | 1.25 |
| RF87-Y0.75KW | 0.75KW | 6.6rpm | 1080N.m | 1.45 |
| RF87-Y0.75KW | 0.75KW | 7rpm | 1020N.m | 1.5 |
| RF87-Y0.75KW | 0.75KW | 7.9rpm | 900N.m | 1.7 |
| RF87-Y0.75KW | 0.75KW | 9.2rpm | 775N.m | 2 |
| RF87-Y0.75KW | 0.75KW | 10rpm | 710N.m | 2.2 |
| RF87-Y0.75KW | 0.75KW | 11rpm | 620N.m | 2.5 |
| RF87-Y0.75KW | 0.75KW | 12rpm | 590N.m | 2.6 |
| RF87-Y0.75KW | 0.75KW | 14rpm | 515N.m | 3 |
| RF87-Y0.75KW | 0.75KW | 15rpm | 465N.m | 3.3 |
RF87減速機配1.1KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF87-Y1.1KW | 1.1KW | 6.6rpm | 1600N.m | 0.95 |
| RF87-Y1.1KW | 1.1KW | 6.9rpm | 1520N.m | 1 |
| RF87-Y1.1KW | 1.1KW | 7.8rpm | 1340N.m | 1.15 |
| RF87-Y1.1KW | 1.1KW | 9.1rpm | 1140N.m | 1.35 |
| RF87-Y1.1KW | 1.1KW | 10rpm | 1050N.m | 1.45 |
| RF87-Y1.1KW | 1.1KW | 11rpm | 920N.m | 1.7 |
| RF87-Y1.1KW | 1.1KW | 12rpm | 870N.m | 1.75 |
| RF87-Y1.1KW | 1.1KW | 14rpm | 765N.m | 2 |
| RF87-Y1.1KW | 1.1KW | 15rpm | 690N.m | 2.2 |
| RF87-Y1.1KW | 1.1KW | 17rpm | 605N.m | 2.6 |
| RF87-Y1.1KW | 1.1KW | 20rpm | 535N.m | 2.9 |
| RF87-Y1.1KW | 1.1KW | 22rpm | 470N.m | 3.3 |
| RF87-Y1.1KW | 1.1KW | 24rpm | 445N.m | 3.5 |
| RF87-Y1.1KW | 1.1KW | 27rpm | 390N.m | 4 |
RF87減速機配1.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF87-Y1.5KW | 1.5KW | 3.7rpm | 1820N.m | 0.85 |
| RF87-Y1.5KW | 1.5KW | 4.2rpm | 1550N.m | 1 |
| RF87-Y1.5KW | 1.5KW | 4.4rpm | 1420N.m | 1.1 |
| RF87-Y1.5KW | 1.5KW | 5rpm | 1250N.m | 1.25 |
| RF87-Y1.5KW | 1.5KW | 5.8rpm | 1180N.m | 1.3 |
| RF87-Y1.5KW | 1.5KW | 3.7rpm | 1030N.m | 1.5 |
| RF87-Y1.5KW | 1.5KW | 4.2rpm | 930N.m | 1.65 |
| RF87-Y1.5KW | 1.5KW | 4.4rpm | 820N.m | 1.9 |
| RF87-Y1.5KW | 1.5KW | 5rpm | 725N.m | 2.1 |
| RF87-Y1.5KW | 1.5KW | 5.8rpm | 635N.m | 2.4 |
| RF87-Y1.5KW | 1.5KW | 6.4rpm | 600N.m | 2.6 |
| RF87-Y1.5KW | 1.5KW | 6.4rpm | 525N.m | 2.9 |
| RF87-Y1.5KW | 1.5KW | 6.4rpm | 475N.m | 3.2 |
| RF87-Y1.5KW | 1.5KW | 6.4rpm | 415N.m | 3.7 |
| RF87-Y1.5KW | 1.5KW | 6.4rpm | 365N.m | 4.2 |
RF87減速機配2.2KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF87-Y2.2KW | 2.2KW | 11rpm | 1840N.m | 0.85 |
| RF87-Y2.2KW | 2.2KW | 12rpm | 1740N.m | 0.9 |
| RF87-Y2.2KW | 2.2KW | 14rpm | 1520N.m | 1 |
| RF87-Y2.2KW | 2.2KW | 15rpm | 1370N.m | 1.15 |
| RF87-Y2.2KW | 2.2KW | 17rpm | 1200N.m | 1.3 |
| RF87-Y2.2KW | 2.2KW | 20rpm | 1060N.m | 1.45 |
| RF87-Y2.2KW | 2.2KW | 22rpm | 930N.m | 1.65 |
| RF87-Y2.2KW | 2.2KW | 24rpm | 880N.m | 1.75 |
| RF87-Y2.2KW | 2.2KW | 27rpm | 775N.m | 2 |
| RF87-Y2.2KW | 2.2KW | 30rpm | 700N.m | 2.2 |
| RF87-Y2.2KW | 2.2KW | 34rpm | 615N.m | 2.5 |
| RF87-Y2.2KW | 2.2KW | 39rpm | 540N.m | 2.8 |
| RF87-Y2.2KW | 2.2KW | 44rpm | 480N.m | 3.2 |
| RF87-Y2.2KW | 2.2KW | 41rpm | 505N.m | 3 |
| RF87-Y2.2KW | 2.2KW | 45rpm | 460N.m | 3.4 |
| RF87-Y2.2KW | 2.2KW | 51rpm | 410N.m | 3.8 |
| RF87-Y2.2KW | 2.2KW | 61rpm | 345N.m | 4.5 |
| RF87-Y2.2KW | 2.2KW | 66rpm | 315N.m | 4.7 |
RF87減速機配3KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF87-Y3KW | 3KW | 16rpm | 1830N.m | 0.85 |
| RF87-Y3KW | 3KW | 18rpm | 1610N.m | 0.95 |
| RF87-Y3KW | 3KW | 20rpm | 1420N.m | 1.1 |
| RF87-Y3KW | 3KW | 23rpm | 1250N.m | 1.25 |
| RF87-Y3KW | 3KW | 24rpm | 1180N.m | 1.3 |
| RF87-Y3KW | 3KW | 28rpm | 1030N.m | 1.5 |
| RF87-Y3KW | 3KW | 31rpm | 930N.m | 1.65 |
| RF87-Y3KW | 3KW | 35rpm | 820N.m | 1.9 |
| RF87-Y3KW | 3KW | 40rpm | 725N.m | 2.1 |
| RF87-Y3KW | 3KW | 45rpm | 640N.m | 2.4 |
| RF87-Y3KW | 3KW | 52rpm | 545N.m | 2.7 |
| RF87-Y3KW | 3KW | 42rpm | 675N.m | 2.2 |
| RF87-Y3KW | 3KW | 46rpm | 615N.m | 2.5 |
| RF87-Y3KW | 3KW | 52rpm | 545N.m | 2.8 |
| RF87-Y3KW | 3KW | 62rpm | 460N.m | 3.4 |
| RF87-Y3KW | 3KW | 68rpm | 420N.m | 3.5 |
| RF87-Y3KW | 3KW | 76rpm | 375N.m | 3.8 |
| RF87-Y3KW | 3KW | 85rpm | 335N.m | 4.1 |
| RF87-Y3KW | 3KW | 95rpm | 300N.m | 4.4 |
RF87減速機配4KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF87-Y4KW | 4KW | 23rpm | 1660N.m | 0.95 |
| RF87-Y4KW | 4KW | 24rpm | 1570N.m | 1 |
| RF87-Y4KW | 4KW | 28rpm | 1380N.m | 1.1 |
| RF87-Y4KW | 4KW | 31rpm | 1240N.m | 1.25 |
| RF87-Y4KW | 4KW | 35rpm | 1090N.m | 1.4 |
| RF87-Y4KW | 4KW | 40rpm | 960N.m | 1.6 |
| RF87-Y4KW | 4KW | 45rpm | 850N.m | 1.8 |
| RF87-Y4KW | 4KW | 52rpm | 725N.m | 2.1 |
| RF87-Y4KW | 4KW | 42rpm | 900N.m | 1.65 |
| RF87-Y4KW | 4KW | 46rpm | 820N.m | 1.9 |
| RF87-Y4KW | 4KW | 52rpm | 725N.m | 2.1 |
| RF87-Y4KW | 4KW | 62rpm | 610N.m | 2.5 |
| RF87-Y4KW | 4KW | 68rpm | 560N.m | 2.7 |
| RF87-Y4KW | 4KW | 76rpm | 495N.m | 2.9 |
| RF87-Y4KW | 4KW | 85rpm | 445N.m | 3.1 |
| RF87-Y4KW | 4KW | 95rpm | 400N.m | 3.3 |
| RF87-Y4KW | 4KW | 110rpm | 345N.m | 3.7 |
| RF87-Y4KW | 4KW | 122rpm | 310N.m | 3.9 |
RF87減速機配5.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF87-Y5.5KW | 5.5KW | 31rpm | 1710N.m | 0.9 |
| RF87-Y5.5KW | 5.5KW | 35rpm | 1500N.m | 1.05 |
| RF87-Y5.5KW | 5.5KW | 40rpm | 1320N.m | 1.15 |
| RF87-Y5.5KW | 5.5KW | 45rpm | 1170N.m | 1.3 |
| RF87-Y5.5KW | 5.5KW | 52rpm | 1000N.m | 1.5 |
| RF87-Y5.5KW | 5.5KW | 52rpm | 1000N.m | 1.55 |
| RF87-Y5.5KW | 5.5KW | 62rpm | 840N.m | 1.85 |
| RF87-Y5.5KW | 5.5KW | 68rpm | 775N.m | 1.95 |
| RF87-Y5.5KW | 5.5KW | 76rpm | 685N.m | 2.1 |
| RF87-Y5.5KW | 5.5KW | 85rpm | 615N.m | 2.3 |
| RF87-Y5.5KW | 5.5KW | 95rpm | 550N.m | 2.4 |
| RF87-Y5.5KW | 5.5KW | 109rpm | 480N.m | 2.7 |
| RF87-Y5.5KW | 5.5KW | 122rpm | 430N.m | 2.9 |
| RF87-Y5.5KW | 5.5KW | 147rpm | 355N.m | 3.3 |
| RF87-Y5.5KW | 5.5KW | 159rpm | 330N.m | 3.7 |
| RF87-Y5.5KW | 5.5KW | 177rpm | 295N.m | 3.9 |
| RF87-Y5.5KW | 5.5KW | 204rpm | 255N.m | 4.2 |
RF87減速機配7.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF87-Y7.5KW | 7.5KW | 40rpm | 1790N.m | 0.85 |
| RF87-Y7.5KW | 7.5KW | 45rpm | 1590N.m | 0.95 |
| RF87-Y7.5KW | 7.5KW | 53rpm | 1350N.m | 1.1 |
| RF87-Y7.5KW | 7.5KW | 53rpm | 1350N.m | 1.15 |
| RF87-Y7.5KW | 7.5KW | 63rpm | 1140N.m | 1.35 |
| RF87-Y7.5KW | 7.5KW | 68rpm | 1040N.m | 1.45 |
| RF87-Y7.5KW | 7.5KW | 77rpm | 930N.m | 1.55 |
| RF87-Y7.5KW | 7.5KW | 86rpm | 830N.m | 1.65 |
| RF87-Y7.5KW | 7.5KW | 96rpm | 745N.m | 1.8 |
| RF87-Y7.5KW | 7.5KW | 110rpm | 645N.m | 1.95 |
| RF87-Y7.5KW | 7.5KW | 123rpm | 580N.m | 2.1 |
| RF87-Y7.5KW | 7.5KW | 148rpm | 480N.m | 2.4 |
| RF87-Y7.5KW | 7.5KW | 161rpm | 445N.m | 2.7 |
| RF87-Y7.5KW | 7.5KW | 179rpm | 400N.m | 2.9 |
| RF87-Y7.5KW | 7.5KW | 206rpm | 345N.m | 3.1 |
| RF87-Y7.5KW | 7.5KW | 230rpm | 310N.m | 3.3 |
| RF87-Y7.5KW | 7.5KW | 277rpm | 255N.m | 3.5 |
RF87減速機配11KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF87-Y11KW | 11KW | 69rpm | 1530N.m | 1 |
| RF87-Y11KW | 11KW | 77rpm | 1360N.m | 1.05 |
| RF87-Y11KW | 11KW | 86rpm | 1210N.m | 1.15 |
| RF87-Y11KW | 11KW | 96rpm | 1090N.m | 1.25 |
| RF87-Y11KW | 11KW | 111rpm | 940N.m | 1.35 |
| RF87-Y11KW | 11KW | 124rpm | 840N.m | 1.45 |
| RF87-Y11KW | 11KW | 149rpm | 705N.m | 1.65 |
| RF87-Y11KW | 11KW | 161rpm | 650N.m | 1.85 |
| RF87-Y11KW | 11KW | 179rpm | 585N.m | 2 |
| RF87-Y11KW | 11KW | 207rpm | 505N.m | 2.1 |
| RF87-Y11KW | 11KW | 231rpm | 455N.m | 2.2 |
| RF87-Y11KW | 11KW | 278rpm | 375N.m | 2.4 |
RF87減速機配15KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF87-Y15KW | 15KW | 86rpm | 1660N.m | 0.85 |
| RF87-Y15KW | 15KW | 95rpm | 1500N.m | 0.9 |
| RF87-Y15KW | 15KW | 110rpm | 1300N.m | 1 |
| RF87-Y15KW | 15KW | 123rpm | 1160N.m | 1.05 |
| RF87-Y15KW | 15KW | 148rpm | 960N.m | 1.2 |
| RF87-Y15KW | 15KW | 160rpm | 890N.m | 1.35 |
| RF87-Y15KW | 15KW | 178rpm | 800N.m | 1.45 |
| RF87-Y15KW | 15KW | 205rpm | 695N.m | 1.55 |
| RF87-Y15KW | 15KW | 229rpm | 620N.m | 1.65 |
| RF87-Y15KW | 15KW | 276rpm | 515N.m | 1.75 |
RF87減速機配18.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF87-Y18.5KW | 18.5KW | 110rpm | 1600N.m | 0.8 |
| RF87-Y18.5KW | 18.5KW | 123rpm | 1430N.m | 0.85 |
| RF87-Y18.5KW | 18.5KW | 148rpm | 1190N.m | 1 |
| RF87-Y18.5KW | 18.5KW | 160rpm | 1100N.m | 1.1 |
| RF87-Y18.5KW | 18.5KW | 178rpm | 990N.m | 1.15 |
| RF87-Y18.5KW | 18.5KW | 205rpm | 860N.m | 1.25 |
| RF87-Y18.5KW | 18.5KW | 229rpm | 770N.m | 1.3 |
| RF87-Y18.5KW | 18.5KW | 276rpm | 635N.m | 1.4 |
RF87減速機配22KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF87-Y22KW | 22KW | 149rpm | 1410N.m | 0.85 |
| RF87-Y22KW | 22KW | 161rpm | 1300N.m | 0.95 |
| RF87-Y22KW | 22KW | 179rpm | 1170N.m | 1 |
| RF87-Y22KW | 22KW | 207rpm | 1010N.m | 1.05 |
| RF87-Y22KW | 22KW | 231rpm | 900N.m | 1.1 |
| RF87-Y22KW | 22KW | 278rpm | 750N.m | 1.2 |
RF88減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R88減速機
關鍵詞:GRF系列減速機立式一體式_直線輸出減速機配電機_RF系列減速器_直連電機減速機_直連減速機_直連減速器_直聯減速機_RF系列減速機_RF型減速機_RF齒輪減速馬達
RF系列減速機型號：RF18減速機,RF28減速機,RF38減速機,RF48減速機,RF58減速機,RF68減速機,RF78減速機,RF88減速機,RF98減速機,RF108減速機,RF138減速機,RF148減速機,RF168減速機
RF系列斜齒輪減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: RF88減速機 RF87立式硬齒面斜齒輪減速機 RF87系列減速機 RF87減速機傳動比 RF87減速機選型參數 RF87減速機CAD三維圖
