RF168減速機詳細信息

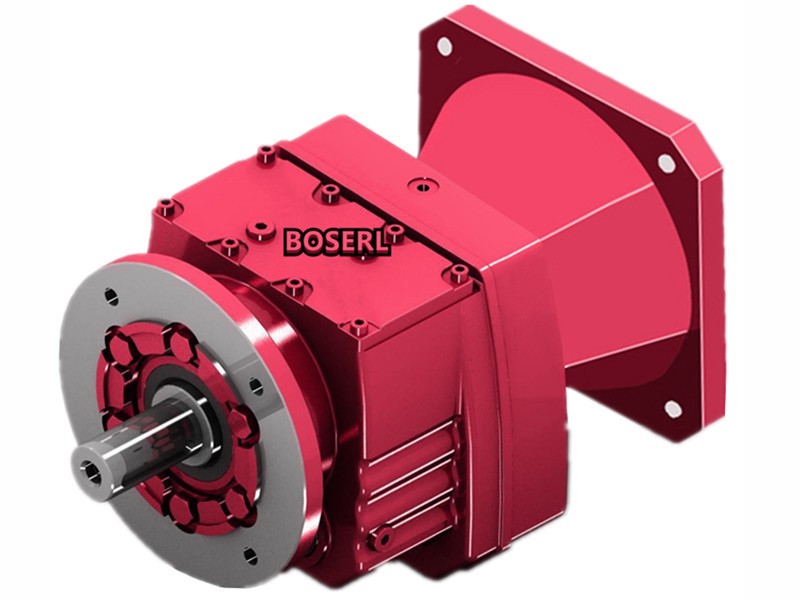

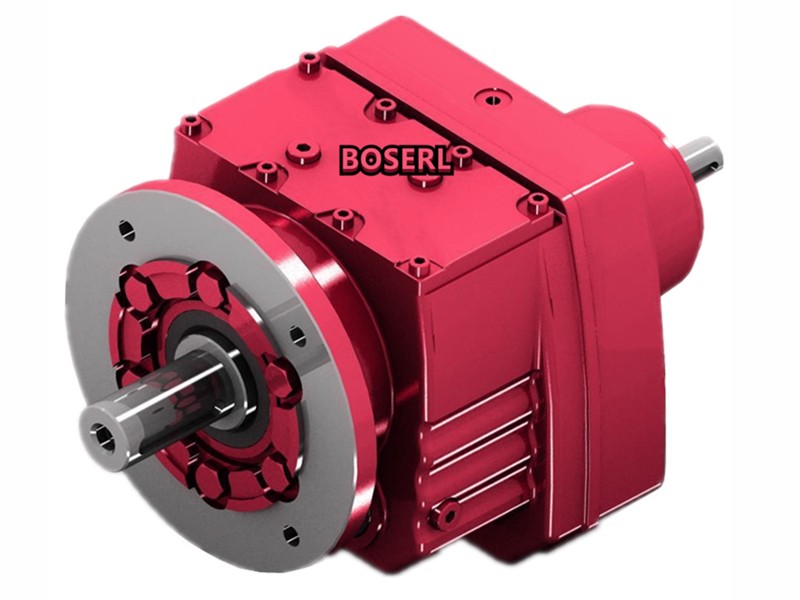

RF168減速機
訂購熱線：13360667204
RF168減速機傳動比計算：齒輪減速馬達
傳送帶參數：齒輪直徑420，傳送58噸，傳送一分鐘18米
18米÷（0.42齒輪直徑X3.14）=13.65轉每分鐘
58噸換算成N=580000N
580000×0.21齒輪半徑×0.06摩擦系數=7308N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍7308×2=14616N.m
電機轉數1400÷輸出轉數13.65=102.56比
14616N.m輸出扭矩÷102.56比=142.51N.m電機扭矩
142.51N.m電機扭矩?fù)Q算成功率22.62KW左右
對應的RF168減速機選型參數：
型號：RF168-BEJ15KW
減速比：107.49
輸出轉數：14轉每分鐘
輸出扭矩：15300N.m
安全系數：1.2
RF168減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）RF系列減速機
RF168立式硬齒面斜齒輪減速機型號：
RF167系列減速機參數大全：同軸斜齒輪減速電機
RF167減速機配11KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF167-Y11KW | 11KW | 6.4rpm | 16500N.m | 1.1 |
| RF167-Y11KW | 11KW | 7.8rpm | 13400N.m | 1.35 |
| RF167-Y11KW | 11KW | 9.5rpm | 11000N.m | 1.65 |
| RF167-Y11KW | 11KW | 10rpm | 10000N.m | 1.8 |
| RF167-Y11KW | 11KW | 12rpm | 8760N.m | 2 |
| RF167-Y11KW | 11KW | 14rpm | 7730N.m | 2.3 |
| RF167-Y11KW | 11KW | 16rpm | 6700N.m | 2.7 |
| RF167-Y11KW | 11KW | 18rpm | 5960N.m | 3 |
RF167減速機配15KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF167-Y15KW | 15KW | 6.4rpm | 22500N.m | 0.8 |
| RF167-Y15KW | 15KW | 7.8rpm | 18300N.m | 1 |
| RF167-Y15KW | 15KW | 9.5rpm | 15000N.m | 1.2 |
| RF167-Y15KW | 15KW | 10rpm | 13700N.m | 1.3 |
| RF167-Y15KW | 15KW | 12rpm | 12000N.m | 1.5 |
| RF167-Y15KW | 15KW | 14rpm | 10500N.m | 1.7 |
| RF167-Y15KW | 15KW | 16rpm | 9140N.m | 1.95 |
| RF167-Y15KW | 15KW | 18rpm | 8130N.m | 2.2 |
| RF167-Y15KW | 15KW | 20rpm | 7230N.m | 2.5 |
| RF167-Y15KW | 15KW | 22rpm | 1610N.m | 2.7 |
RF167減速機配18.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF167-Y18.5KW | 18.5KW | 7.8rpm | 22600N.m | 0.8 |
| RF167-Y18.5KW | 18.5KW | 9.5rpm | 18500N.m | 0.95 |
| RF167-Y18.5KW | 18.5KW | 10rpm | 16900N.m | 1.05 |
| RF167-Y18.5KW | 18.5KW | 12rpm | 14700N.m | 1.2 |
| RF167-Y18.5KW | 18.5KW | 14rpm | 13000N.m | 1.4 |
| RF167-Y18.5KW | 18.5KW | 16rpm | 11200N.m | 1.6 |
| RF167-Y18.5KW | 18.5KW | 18rpm | 10000N.m | 1.8 |
| RF167-Y18.5KW | 18.5KW | 20rpm | 8910N.m | 2 |
| RF167-Y18.5KW | 18.5KW | 22rpm | 8150N.m | 2.2 |
| RF167-Y18.5KW | 18.5KW | 25rpm | 7090N.m | 2.5 |
RF167減速機配22KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF167-Y22KW | 22KW | 9.5rpm | 22000 | 0.8 |
| RF167-Y22KW | 22KW | 10rpm | 20100 | 0.9 |
| RF167-Y22KW | 22KW | 12rpm | 17500 | 1.05 |
| RF167-Y22KW | 22KW | 14rpm | 15400 | 1.15 |
| RF167-Y22KW | 22KW | 16rpm | 13400 | 1.35 |
| RF167-Y22KW | 22KW | 18rpm | 11900 | 1.5 |
| RF167-Y22KW | 22KW | 20rpm | 10600 | 1.7 |
| RF167-Y22KW | 22KW | 22rpm | 9690 | 1.85 |
| RF167-Y22KW | 22KW | 25rpm | 8430 | 2.1 |
| RF167-Y22KW | 22KW | 28rpm | 7440 | 2.4 |
| RF167-Y22KW | 22KW | 33rpm | 6450 | 2.8 |
RF167減速機配30KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF167-Y30KW | 30kw | 14rpm | 20900N.m | 0.85 |
| RF167-Y30KW | 30kw | 16rpm | 18100N.m | 1 |
| RF167-Y30KW | 30kw | 18rpm | 16100N.m | 1.1 |
| RF167-Y30KW | 30kw | 20rpm | 14300N.m | 1.25 |
| RF167-Y30KW | 30kw | 22rpm | 13100N.m | 1.4 |
| RF167-Y30KW | 30kw | 25rpm | 11400N.m | 1.6 |
| RF167-Y30KW | 30kw | 28rpm | 10100N.m | 1.8 |
| RF167-Y30KW | 30kw | 33rpm | 8710N.m | 2.1 |
| RF167-Y30KW | 30kw | 37rpm | 7750N.m | 2.3 |
| RF167-Y30KW | 30kw | 43rpm | 6680N.m | 2.7 |
| RF167-Y30KW | 30kw | 53rpm | 5430N.m | 3.3 |
| RF167-Y30KW | 30kw | 62rpm | 4610N.m | 3.9 |
RF167減速機配37KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF167-Y37KW | 37kw | 16rpm | 22300N.m | 0.8 |
| RF167-Y37KW | 37kw | 18rpm | 19900N.m | 0.9 |
| RF167-Y37KW | 37kw | 20rpm | 17700N.m | 1 |
| RF167-Y37KW | 37kw | 22rpm | 16100N.m | 1.1 |
| RF167-Y37KW | 37kw | 25rpm | 14000N.m | 1.3 |
| RF167-Y37KW | 37kw | 28rpm | 12400N.m | 1.45 |
| RF167-Y37KW | 37kw | 33rpm | 10700N.m | 1.65 |
| RF167-Y37KW | 37kw | 37rpm | 9590N.m | 1.9 |
| RF167-Y37KW | 37kw | 43rpm | 8270N.m | 2.2 |
| RF167-Y37KW | 37kw | 53rpm | 6710N.m | 2.7 |
| RF167-Y37KW | 37kw | 48rpm | 7380N.m | 1.35 |
| RF167-Y37KW | 37kw | 60rpm | 5900N.m | 2.4 |
| RF167-Y37KW | 37kw | 67rpm | 5250N.m | 2.5 |
| RF167-Y37KW | 37kw | 77rpm | 4570N.m | 3.5 |
| RF167-Y37KW | 37kw | 87rpm | 4080N.m | 3.7 |
RF167減速機配45KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF167-Y45KW | 45kw | 20rpm | 21300N.m | 0.85 |
| RF167-Y45KW | 45kw | 22rpm | 19500N.m | 0.9 |
| RF167-Y45KW | 45kw | 25rpm | 17000N.m | 1.05 |
| RF167-Y45KW | 45kw | 29rpm | 15000N.m | 1.2 |
| RF167-Y45KW | 45kw | 33rpm | 13000N.m | 1.4 |
| RF167-Y45KW | 45kw | 37rpm | 11500N.m | 1.55 |
| RF167-Y45KW | 45kw | 43rpm | 9990N.m | 1.8 |
| RF167-Y45KW | 45kw | 53rpm | 8110N.m | 2.2 |
| RF167-Y45KW | 45kw | 62rpm | 6880N.m | 2.6 |
| RF167-Y45KW | 45kw | 48rpm | 8910N.m | 1.1 |
| RF167-Y45KW | 45kw | 60rpm | 7130N.m | 1.95 |
| RF167-Y45KW | 45kw | 68rpm | 6340N.m | 2 |
| RF167-Y45KW | 45kw | 78rpm | 5520N.m | 2.9 |
| RF167-Y45KW | 45kw | 87rpm | 4930N.m | 3 |
RF167減速機配55KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF167-Y55KW | 55kw | 25rpm | 20800N.m | 0.85 |
| RF167-Y55KW | 55kw | 28rpm | 18400N.m | 1 |
| RF167-Y55KW | 55kw | 33rpm | 15900N.m | 1.15 |
| RF167-Y55KW | 55kw | 37rpm | 14200N.m | 1.25 |
| RF167-Y55KW | 55kw | 43rpm | 12200N.m | 1.45 |
| RF167-Y55KW | 55kw | 53rpm | 9950N.m | 1.8 |
| RF167-Y55KW | 55kw | 62rpm | 8440N.m | 2.1 |
| RF167-Y55KW | 55kw | 60rpm | 8740N.m | 1.6 |
| RF167-Y55KW | 55kw | 68rpm | 7770N.m | 1.65 |
| RF167-Y55KW | 55kw | 78rpm | 6770N.m | 2.4 |
| RF167-Y55KW | 55kw | 87rpm | 6040N.m | 2.5 |
| RF167-Y55KW | 55kw | 102rpm | 5150N.m | 3.5 |
| RF167-Y55KW | 55kw | 123rpm | 4270N.m | 4 |
RF167減速機配75KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF167-Y75KW | 75kw | 33rpm | 21700N.m | 0.85 |
| RF167-Y75KW | 75kw | 37rpm | 19300N.m | 0.95 |
| RF167-Y75KW | 75kw | 43rpm | 16600N.m | 1.1 |
| RF167-Y75KW | 75kw | 53rpm | 13500N.m | 1.35 |
| RF167-Y75KW | 75kw | 62rpm | 11400N.m | 1.55 |
| RF167-Y75KW | 75kw | 60rpm | 11800N.m | 1.2 |
| RF167-Y75KW | 75kw | 68rpm | 10500N.m | 1.25 |
| RF167-Y75KW | 75kw | 78rpm | 9210N.m | 1.75 |
| RF167-Y75KW | 75kw | 87rpm | 8210N.m | 1.85 |
| RF167-Y75KW | 75kw | 102rpm | 7000N.m | 2.6 |
| RF167-Y75KW | 75kw | 123rpm | 5800N.m | 2.9 |
| RF167-Y75KW | 75kw | 145rpm | 4950N.m | 3.4 |
RF167減速機配90KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF167-Y90KW | 90kw | 37rpm | 23100N.m | 0.8 |
| RF167-Y90KW | 90kw | 43rpm | 19900N.m | 0.9 |
| RF167-Y90KW | 90kw | 53rpm | 16200N.m | 1.1 |
| RF167-Y90KW | 90kw | 62rpm | 13700N.m | 1.3 |
| RF167-Y90KW | 90kw | 78rpm | 11000N.m | 1.45 |
| RF167-Y90KW | 90kw | 87rpm | 9860N.m | 1.5 |
| RF167-Y90KW | 90kw | 102rpm | 8400N.m | 2.1 |
| RF167-Y90KW | 90kw | 123rpm | 6960N.m | 2.4 |
| RF167-Y90KW | 90kw | 145rpm | 5940N.m | 2.9 |
RF167減速機配110KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF167-Y110KW | 110kw | 53rpm | 19800N.m | 0.9 |
| RF167-Y110KW | 110kw | 63rpm | 16700N.m | 1.05 |
| RF167-Y110KW | 110kw | 78rpm | 13400N.m | 1.2 |
| RF167-Y110KW | 110kw | 87rpm | 12000N.m | 1.25 |
| RF167-Y110KW | 110kw | 102rpm | 10200N.m | 1.75 |
| RF167-Y110KW | 110kw | 124rpm | 8490N.m | 2 |
| RF167-Y110KW | 110kw | 145rpm | 7250N.m | 2.3 |
RF167減速機配132KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF167-Y132KW | 132kw | 63rpm | 20100N.m | 0.9 |
| RF167-Y132KW | 132kw | 78rpm | 16100N.m | 1 |
| RF167-Y132KW | 132kw | 87rpm | 14400N.m | 1.05 |
| RF167-Y132KW | 132kw | 102rpm | 12200N.m | 1.45 |
| RF167-Y132KW | 132kw | 124rpm | 10100N.m | 1.65 |
| RF167-Y132KW | 132kw | 145rpm | 8680N.m | 1.95 |
RF168減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R168減速機
關鍵詞:GRF系列減速機立式一體式_直線輸出減速機配電機_RF系列減速器_直連電機減速機_直連減速機_直連減速器_直聯減速機_RF系列減速機_RF型減速機_RF齒輪減速馬達
RF系列減速機型號：RF18減速機,RF28減速機,RF38減速機,RF48減速機,RF58減速機,RF68減速機,RF78減速機,RF88減速機,RF98減速機,RF108減速機,RF138減速機,RF148減速機,RF168減速機
RF系列斜齒輪減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: RF168減速機 RF167立式硬齒面斜齒輪減速機 RF167系列減速機 RF167減速機傳動比 RF167減速機選型參數 RF167減速機CAD三維圖
